Maximum soil volume
explored per sensor, providing greater representativeness of measurements.
Precalibrated
with contrasting soil textures and the possibility of modifying user calibration parameters.
Over 20 years of experience
designing and manufacturing sensors, with more than 100,000 units in the field.
Temperature sensor integrated
into each sensor. Thermal compensation of humidity readings.
Standard SDI-12 communication
adaptable to other protocols (RS232, RS485, LoRa, and BLE).
EU (Spain) product and service.
Engineering, manufacturing, and technical support.
Engineering, manufacturing, and technical support.
Technical support for integration into customer systems.
Installed in industrial and agricultural applications.
Multiple configurations
(probe and cable lengths).
Application in all types of crops:
agricultural, green areas, and sports facilities.
Technical specifications
CALIBRATION
The GERBIL probe is supplied factory calibrated for mixed soil types, and the user can subsequently calibrate it for other soil types.
PROBE INSTALLATION
The GERBIL series moisture probe has a diameter of 33.5 mm. To install it in the soil, it is necessary to first drill a hole in the ground with a standard 35 mm drill bit.
Dimensions
Format:
Tubular and modular
Diameter:
33.5mm +/- 0.2mm
Position of humidity sensors:
Every 100mm (See probe models)
Position of temperature sensors:
Every 100mm
Total length of probe:
See probe models
Cable length:
5m (3×0.5mm²)
Electrical Specifications
Power Supply:
3.8V to 15V
Operationg power cosumption:
25mA@ 4 sensors, Vdc 12V.
30mA@ 8 sensors, Vdc 12V.
Power consumption in
standby mode:
<1mA
Communication protocol:
SDI-12 Version 1.3
Operating temperature:
-20ºC to +60ºC
Sensor features
Humidity sensor:
Resolution: <0,005% VWC
Accuracy: ±0.05% VWC
Temperature sensor:
Resolution: 0,01ºC
Accuracy: ±1ºC @ 25ºC
Time measurement:
200ms per sensor
Operating frequency for humidity measurement:
67MHz < ft< 82MHz

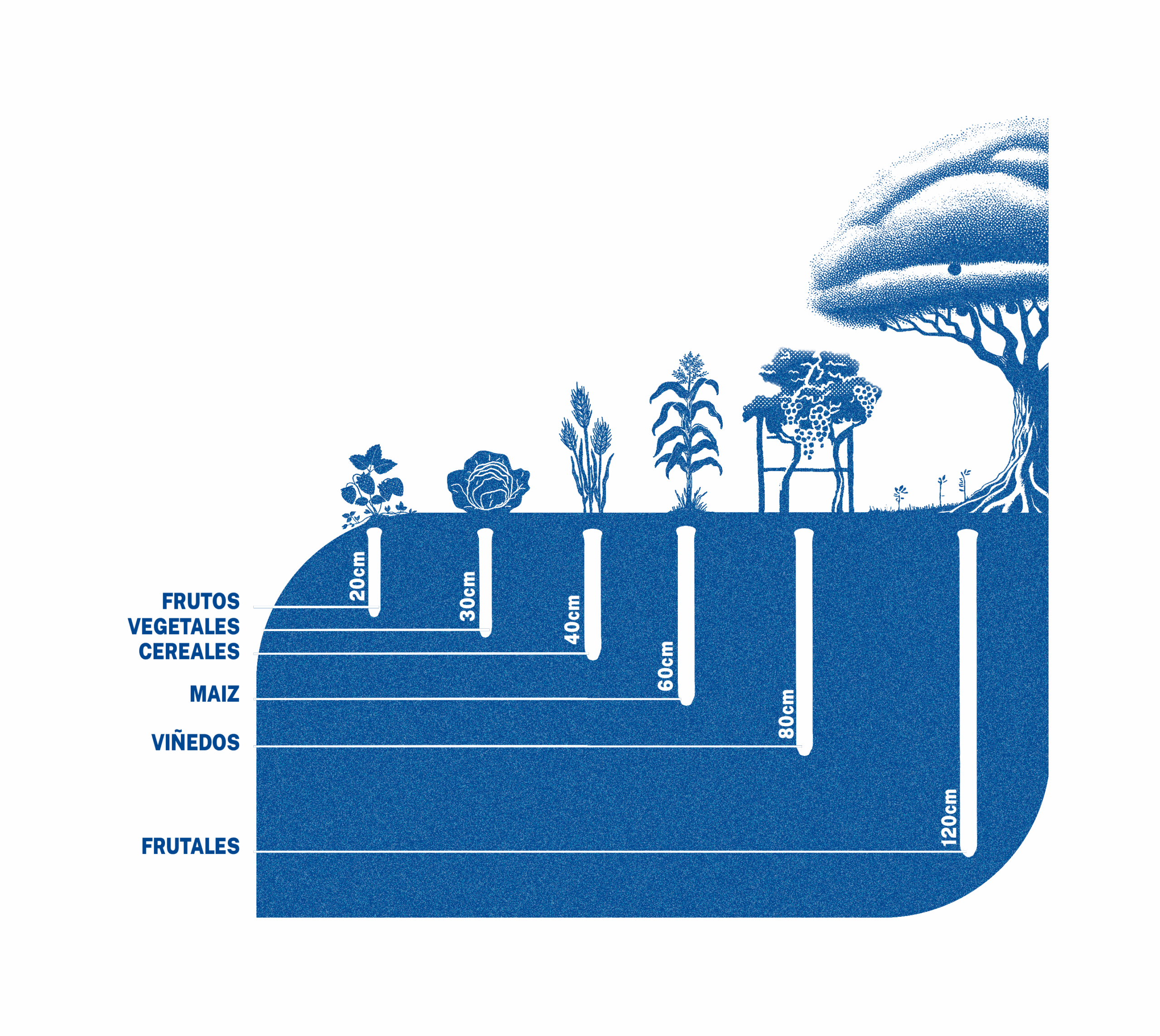

Probe models
Probe model
Nº sensors (Hum. and Temp.)
Distance between sensors (mm)
Depth of last sensor (mm)
Total probe length (cm)
GERBIL 2.02
2
100
200
29
GERBIL 3.03
3
100
300
39
GERBIL 4.04
4
100
400
49
GERBIL 6.06
6
100
600
69
GERBIL 8.08
8
100
800
89
GERBIL 8.06
6
100,200
800
89
GERBIL 12.08
8
100,200
1200
129
